Surface Mounted Wall Expansion Joint Cover SMIL2

This Surface Mounted Aluminum Wall Expansion Joint Cover is designed for internal and external Finished Wall/Ceiling.
All visual surfaces come with a clear anodised finish (standard) or brass colour anodised finish .
Location:Wall to Wall,Ceiling to Ceiling.
Can be successfully powder coated or anodised to harmonize with the wall and ceiling finish.
Offer various movements in 6 directions.
Contact us for larger sizes for custom applications.

NOTE:Minimum and maximum openings represent movement criteria only

Model:W-W	Joint Width(W)		25	50	75	100	125	150	175	200	250	300	350	400	350	500
	Exposed Surface(ES)		120	145	170	195	220	245	270	295	345	395	445	495	545	595
	Movement Capacity(mm)	Total	80	80	80	80	80	80	80	80	80	80	80	80	80	80
		+	40	40	40	40	40	40	40	40	40	40	40	40	40	40
		-	40	40	40	40	40	40	40	40	40	40	40	40	40	40
Model:W-C	Joint Width(W)		25	50	75	100	125	150	175	200	250	300	350	400	450	500
	Exposed Surface(ES)		75	100	125	150	175	200	225	250	300	350	400	450	500	550
	Movement Capacity(mm)	Total	40	40	40	40	40	40	40	40	40	40	40	40	40	40
		+	20	20	20	20	20	20	20	20	20	20	20	20	20	20
		-	20	20	20	20	20	20	20	20	20	20	20	20	20	20

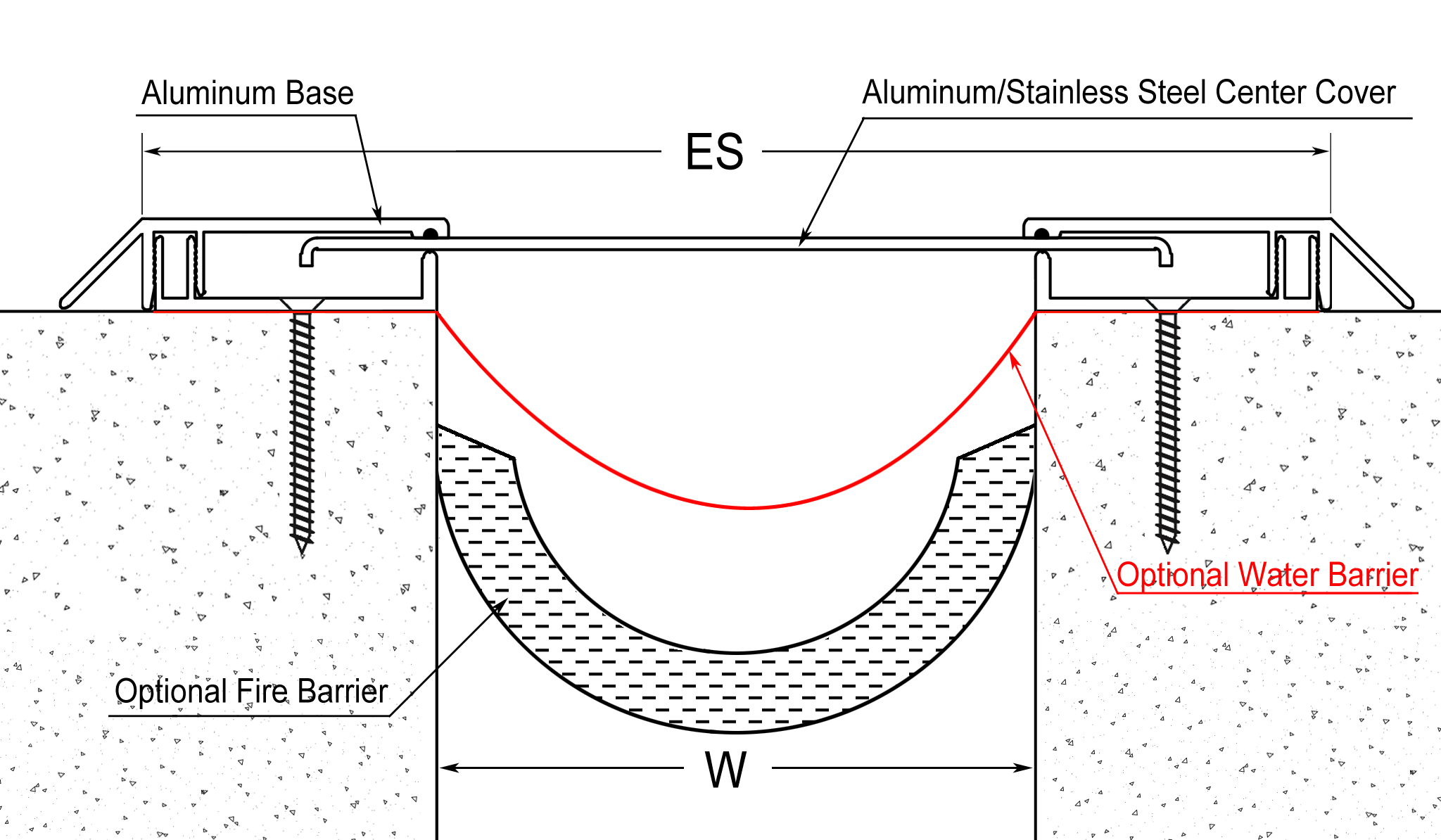

drawing details of Surface Mounted Wall Expansion Joint Cover SMIL2 1
