  • Aluminum Floor Expansion Joint Cover 1

Surface Mounted Aluminum Floor Expansion Joint Cover Plate FOM

Surface Mounted Floor Expansion Joint Cover FOM for interior or exterior floor.
Designed for treatment of floor finishes already finished.
The most popular and economical solution for retrofit and surface mounted installation.
Serrated surface and beveled edges for pedestrians safety
Available in stainless steel,aluminum alloy and brass
Optional water barrier and fire barrier
Joint Sizes range from 50mm to 500mm.
Contact us for larger sizes for custom applications.
NOTE:Minimum and maximum openings represent movement criteria only
Joint Width Exposed Surface Movement Capacity
75 175 37
100 200 50
125 225 62
150 250 75
200 300 100
250 375 125
300 450 150
350 525 175
400 600 200
450 675 225
500 750 250

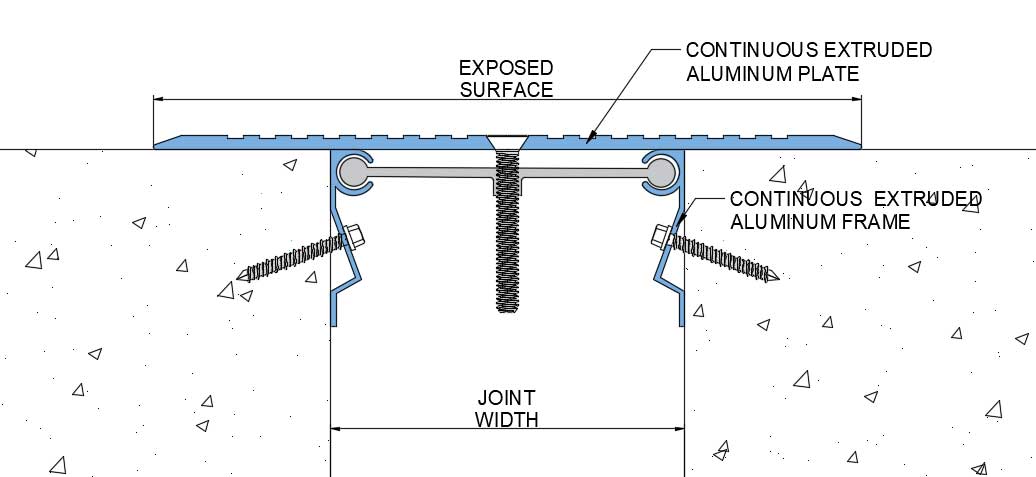

drawing details of Surface Mounted Aluminum Floor Expansion Joint Cover Plate FOM 1
drawing details of Surface Mounted Aluminum Floor Expansion Joint Cover Plate FOM 2
