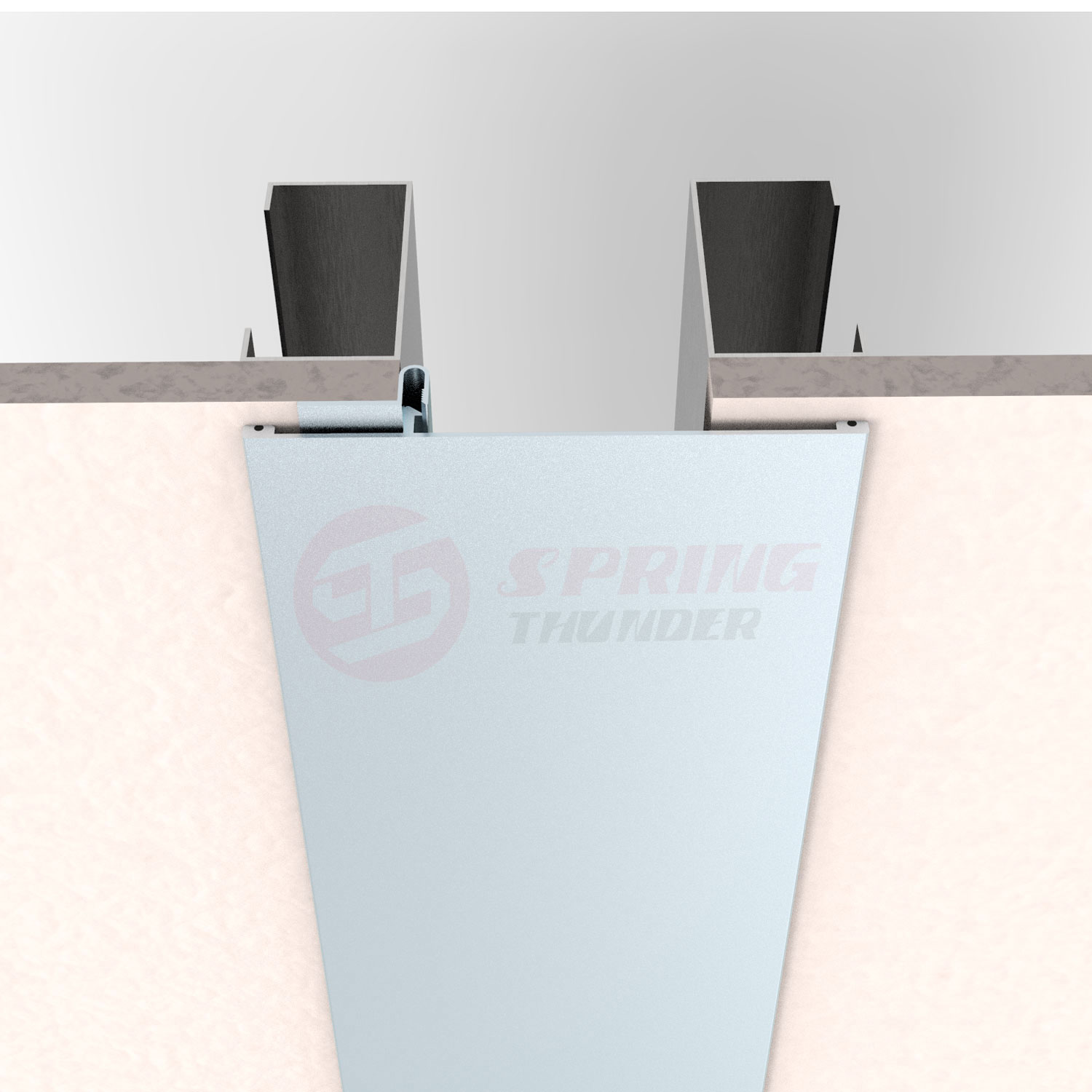

Interior Aluminum Wall Expansion Joint IL1

This is interior wall expansion joint cover / ceiling expansion joint cover, comprised of extruded aluminum components, and rubber gaskets where the cover plates contact adjacent surfaces.
Snap-fit cover design makes for easy on-site install.
No exposed fasteners.
Economical solution for retrofit and surface mount installations.
Clear anodized finish standard.
Optional Kynar, powdercoat, and anodized finishes also available.
Custom stainless steel veneer option available
Location:Wall to Wall,Wall to Corner,Ceiling to Ceiling
Optional:Fire Barrier
Joint Sizes range from 25mm to 200mm.
Contact us for larger sizes for custom applications.

NOTE:Minimum and maximum openings represent movement criteria only

Wall to Wall Ceiling to Ceiling	Joint Width(W)		50	100	150	200
	Exposed Surface(ES)		150	200	250	300
	Movement Capacity(mm)	Total	90	140	190	240
		+	50	50	50	50
		-	40	90	140	190
Wall to Corner	Joint Width(W)		50	100	150
	Exposed Surface(ES)		100	145	200
	Movement Capacity(mm)	Total	85	130	185
		+	50	45	50
		-	35	85	135

drawing details of Interior Aluminum Wall Expansion Joint IL1 1

drawing details of Interior Aluminum Wall Expansion Joint IL1 2
