Seismic Deep Finish Floor Expansion Joint

This series Seismic floor Expansion Joint Cover (

Seismic Gap Cover

) are designed for interior and exterior seismic applications where cover concealment is desired in deeper floor finishes.
The combined use of centerbars and compression spring components correctly repositions the pan after seismic movement.
Material of center plate can be aluminum,stainless steel or galvanized iron to meet your requirements.
Location:Floor to Floor,Floor to Wall
Joint Sizes range from 75mm to 500m.
Contact us for larger sizes for custom applications.

NOTE:Minimum and maximum openings represent movement criteria only

Joint Width(W)		75	100	125	150	175	200	250	300	350	400	450	500
Exposed Surface(ES)		285	310	335	360	385	410	460	510	560	610	660	710
Movement Capacity(mm)	Total	60	60	60	60	60	60	60	60	60	60	60	60
	+	30	30	30	30	30	30	30	30	30	30	30	30
	-	30	30	30	30	30	30	30	30	30	30	30	30

Seismic Deep Finish Floor Expansion Joint Floor to Floor drawing details

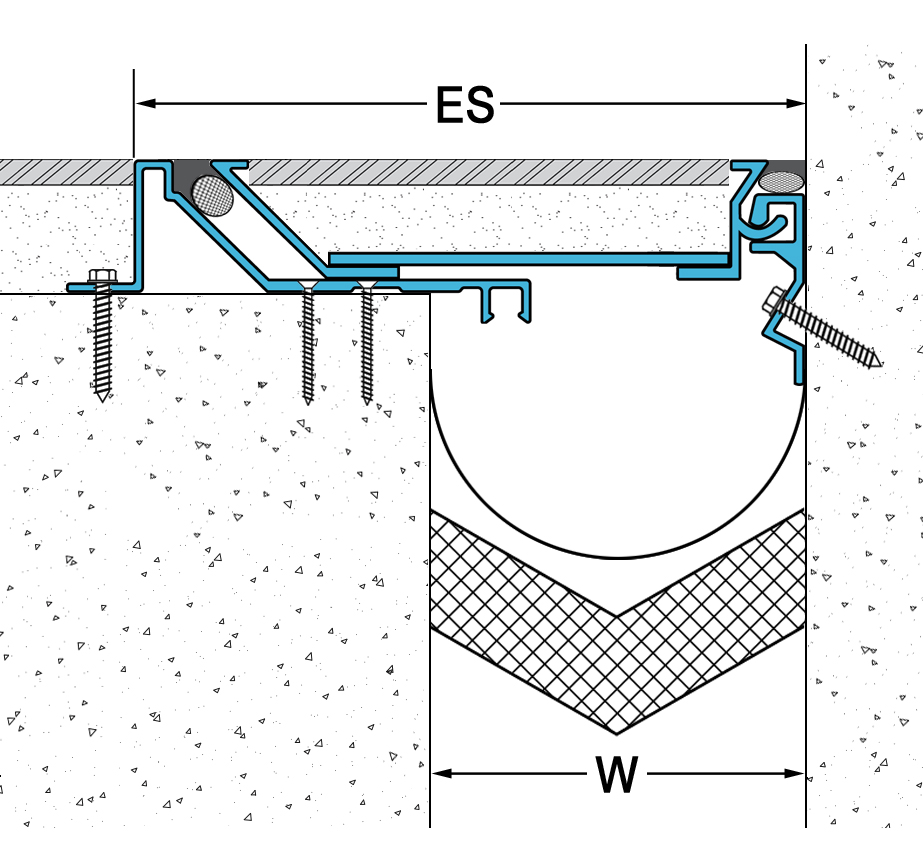

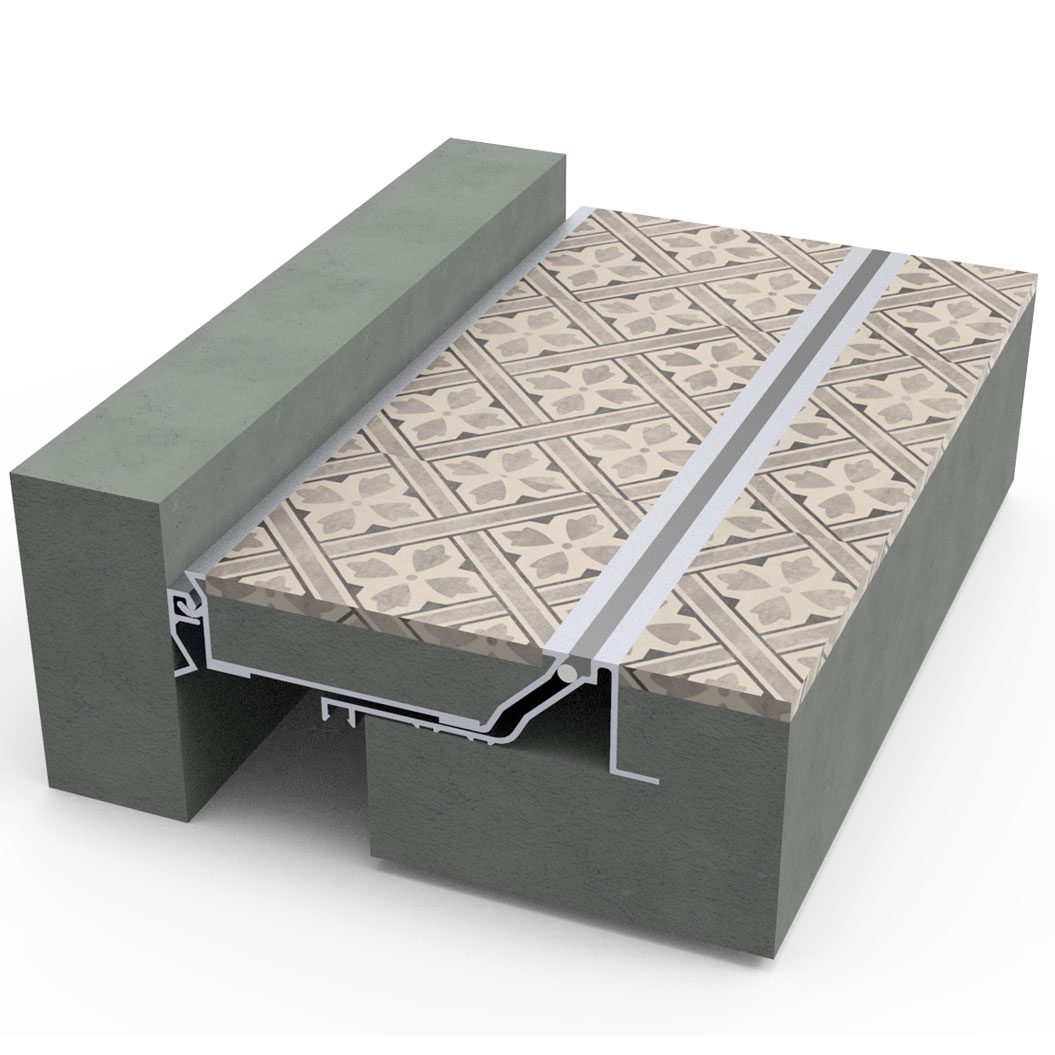

Seismic Deep Finish Floor Expansion Joint Floor to Wall drawing details

Seismic Deep Finish Floor Expansion Joint Floor to Wall drawing details 2
