  • Flush Seismic Floor to floor Expansion Joint with rubber strip 1
  • Flush Seismic Floor to wall Expansion Joint with rubber strip 3

Flush Seismic Floor Expansion Joint With Rubber Strip SFFS

SFFS series seismic floor expansion joint With Rubber Strip are designed to accommodate a 38mm/50mm/58mm deep inlay.
Its EPDM inserts ensure that even with movement occurring the expansion joint covers look neat and tidy and continue to perform without requiring maintenance.
The inserts are far superior to other similar inlay joint covers available that require sealant inserts. Sealant inserts do not cope with movement and traffic. Sealant inserts depress or de-bond over time.
Featuring a pop up system,centering bar/compressing spring assembly repositions the pan after seismic movement.
Ideal for high grade marble,granite,limestone and paver floor finishes
Location:Floor to Floor,Floor to Wall
Contact us for larger sizes for custom applications.
NOTE:Minimum and maximum openings represent movement criteria only
Floor to FloorJoint Width(W)75 100 125 150 175 200 250 300 350 400 450 500
Exposed Surface(ES)215240 265 290 315 340 390440 490 540 690 640
Movement Capacity(mm)Total50 50 50 50 50 505050 50 50 50 50
+25 25 25 25 25 25 25 25 25 252525
-25 25 25 25 25 2525 25 25 25 2525
Floor to WallJoint Width(W)75 100 125 150 175 200 250 300 350 400 450 500
Exposed Surface(ES)145170 195 220 245 270 320 370 420 470 520 570
Movement Capacity(mm)Total25 25 25 2525 25 25 2525 25 25 25
+12.512.512.512.512.512.512.512.512.512.512.512.5
-12.512.512.512.512.512.512.512.512.512.512.512.5
Floor to Floor Flush Seismic Floor Expansion Joint SFFS drawing detail

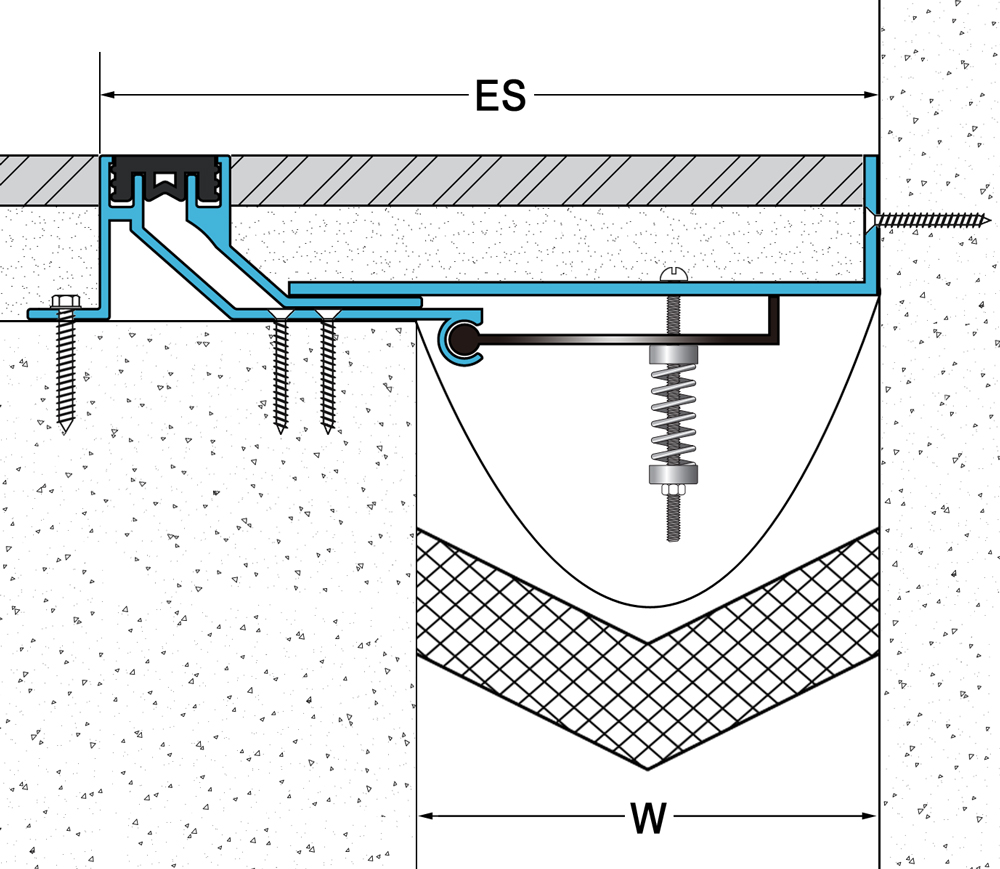

Floor to Wall Flush Seismic Floor Expansion Joint With Rubber Insert drawing detail
