Rubber Seal Floor Expansion Joint (25mm/1 inch)

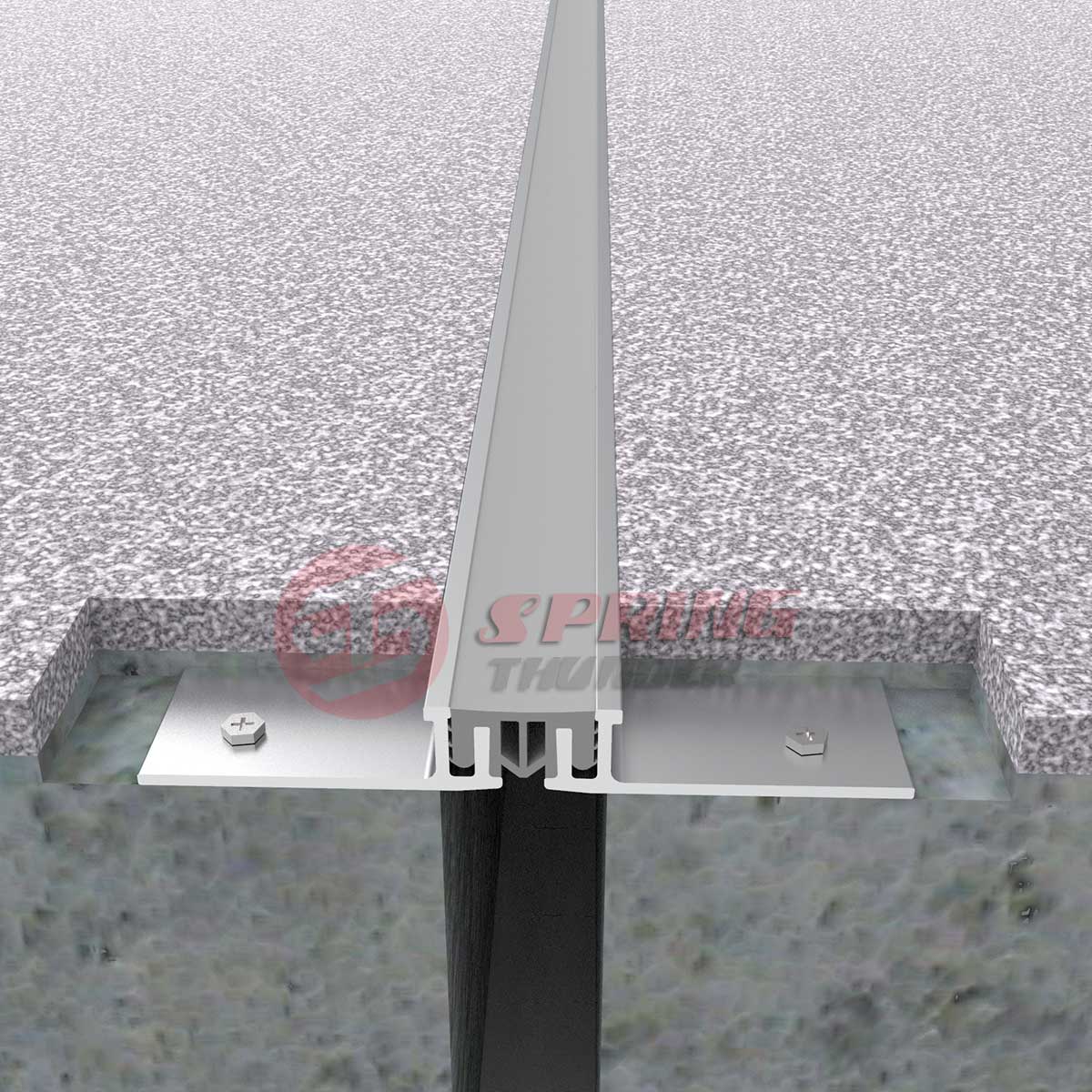

This flush single rubber seal floor expansion joint cover is ideal for interior applications where minimal visual impact is desired.
Suitable for 25mm (1 inch) wide gap.
Easy to clean flush seals
No dirt or water traps.
This cover is adaptable to many finishes,including ceramic tile, marble, stone, vinyl, tile and carpet.
It is available in multiple frame heights,from 15mm to 50mm

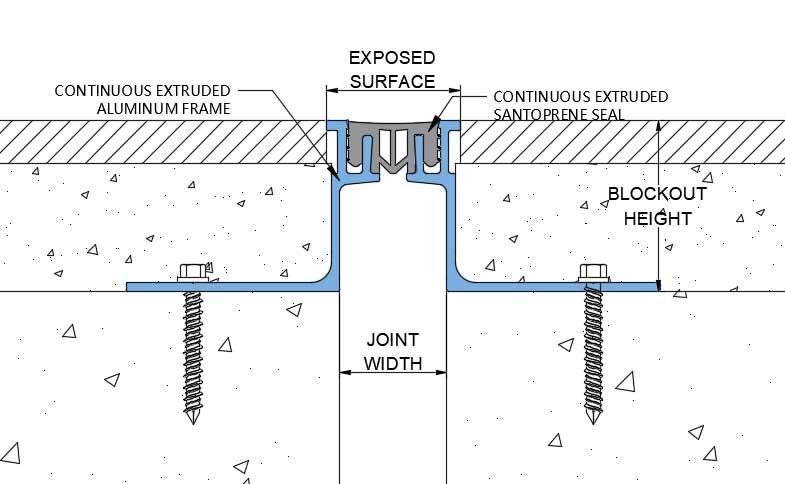

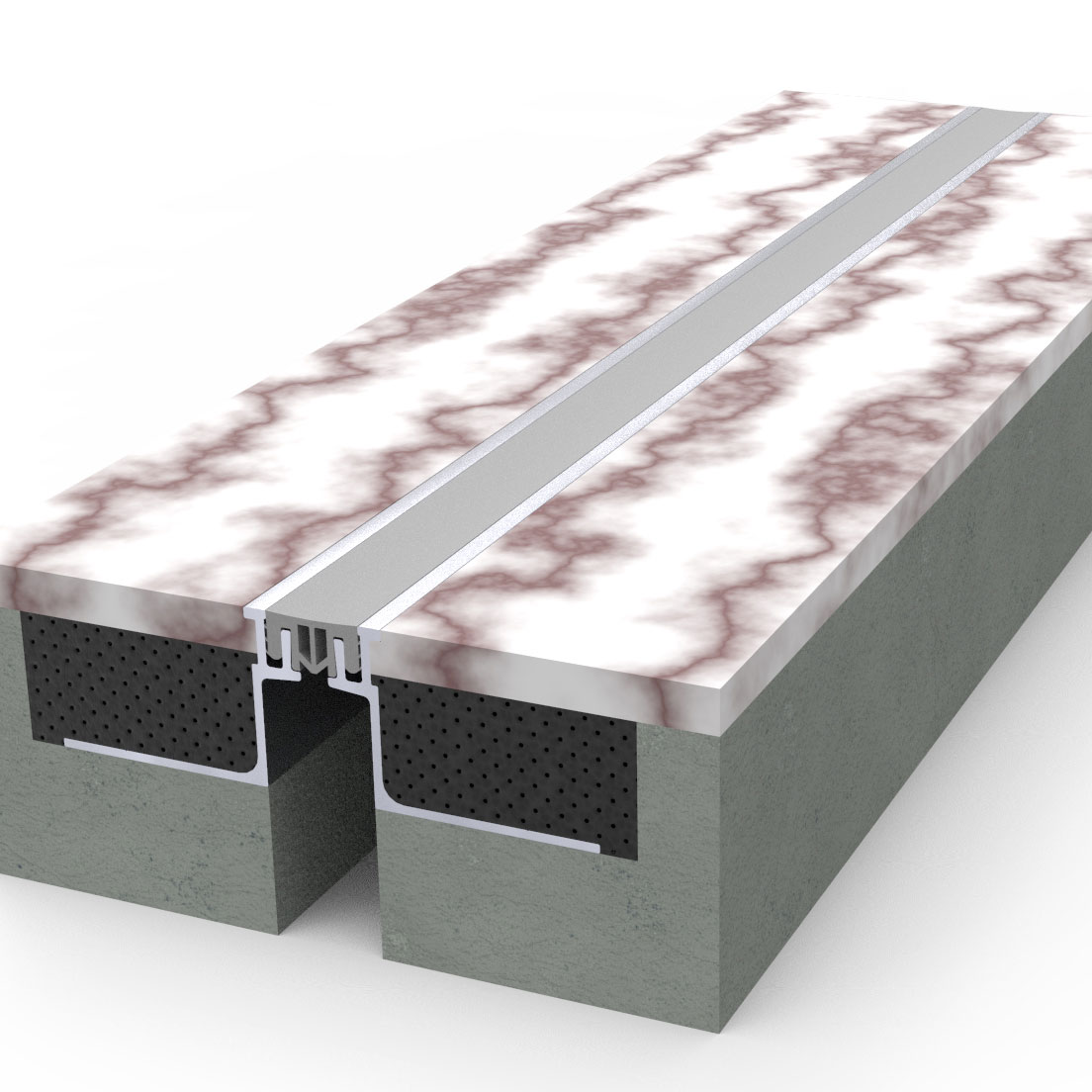

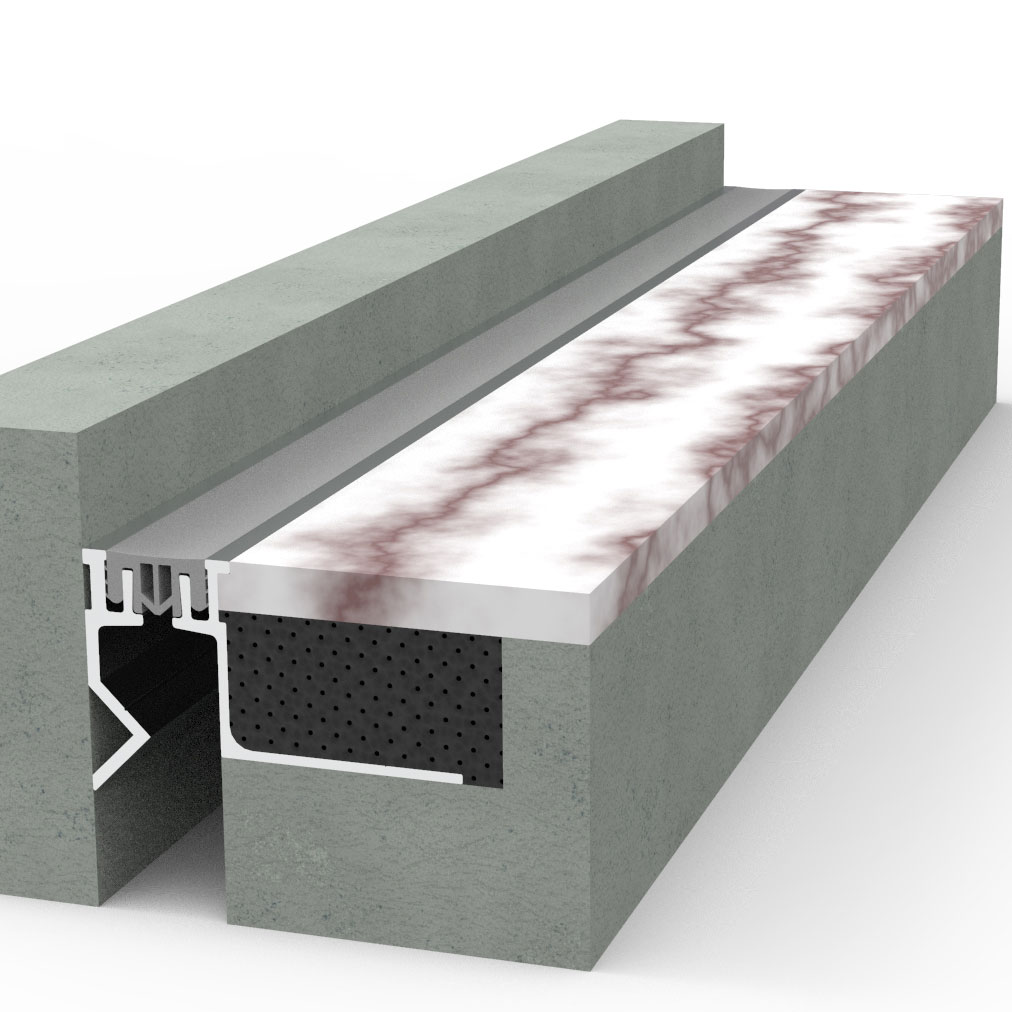

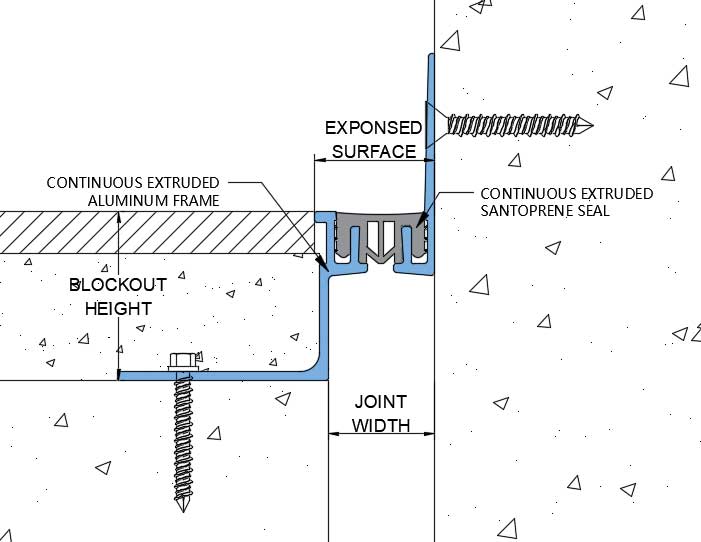

Floor To Floor, Floor To Wall Conditions
Related single rubber seal floor expansion joint cover for 50mm(2 inch) wide gap.
Contact us for larger sizes for custom applications.

NOTE:Minimum and maximum openings represent movement criteria only

Model No.	Joint Width	Minimum Opening	Maximum Opening	Exposed Surface	Blockout Height
FSSF-25-15(floor to floor)	25mm	19mm	32mm	32mm	15mm
FSSF-25-20(floor to floor)	25mm	19mm	32mm	32mm	20mm
FSSF-25-25(floor to floor)	25mm	19mm	32mm	32mm	25mm
FSSF-25-30(floor to floor)	25mm	19mm	32mm	32mm	30mm
FSSF-25-35(floor to floor)	25mm	19mm	32mm	32mm	35mm
FSSF-25-40(floor to floor)	25mm	19mm	32mm	32mm	40mm
FSSF-25-45(floor to floor)	25mm	19mm	32mm	32mm	45mm
FSSF-25-50(floor to floor)	25mm	19mm	32mm	32mm	50mm
F-WSSF-25-15(floor to wall)	25mm	19mm	32mm	29mm	15mm
F-WSSF-25-20(floor to wall)	25mm	19mm	32mm	29mm	20mm
F-WSSF-25-25(floor to wall)	25mm	19mm	32mm	29mm	25mm
F-WSSF-25-30(floor to wall)	25mm	19mm	32mm	29mm	30mm
F-WSSF-25-35(floor to wall)	25mm	19mm	32mm	29mm	35mm
F-WSSF-25-40(floor to wall)	25mm	19mm	32mm	29mm	40mm
F-WSSF-25-45(floor to wall)	25mm	19mm	32mm	29mm	45mm
F-WSSF-25-50(floor to wall)	25mm	19mm	32mm	29mm	50mm
