  • Watertight Traffic Grade Floor Expansion Joint System

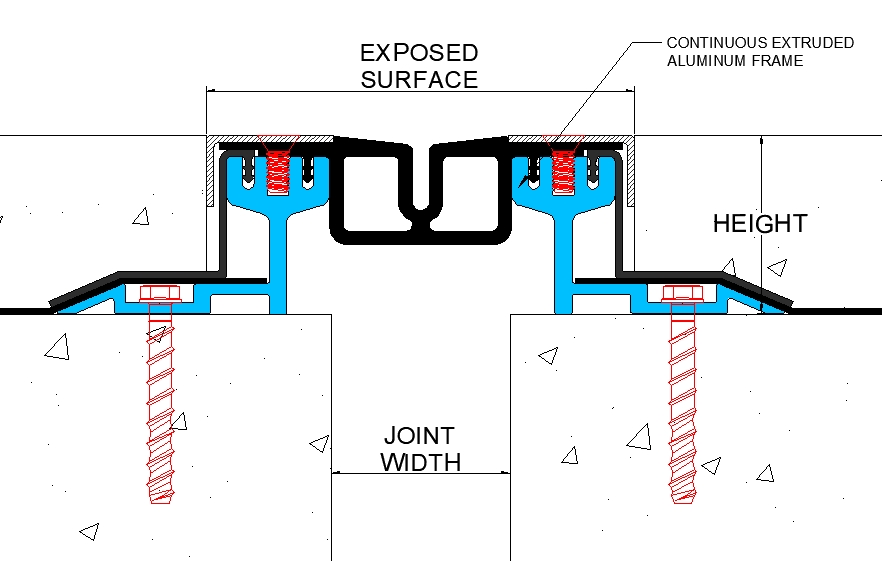

Watertight Traffic Grade Floor Expansion Joint System

It is designed for exterior plaza deck applications
The primary seal expands and contracts to allow for movement and finishes over the wing seal to create a watertight application
Best possible connection with the sealing layer
Mounting brackets are made of high strength aluminium,high loads without any risk of rust
Central insert on top surface,visual inspection and replacement without disrupting the surface
Stainless steel cappings ensures good skid resistance

Contact us for larger sizes for custom applications.
NOTE:Minimum and maximum openings represent movement criteria only
Floor to FloorJoint Width(W)50 75 100
Exposed Surface(ES)120120 170
Minimum Opening(mm)2545 40
Maximum Opening(mm)80105 160
Floor to WallJoint Width(W)5075 100
Exposed Surface(ES)8585 135
Minimum Opening(mm)2015 40
Maximum Opening(mm)80140 160
