Expansion Joint Cover Plate With Slotted Holes - FSP

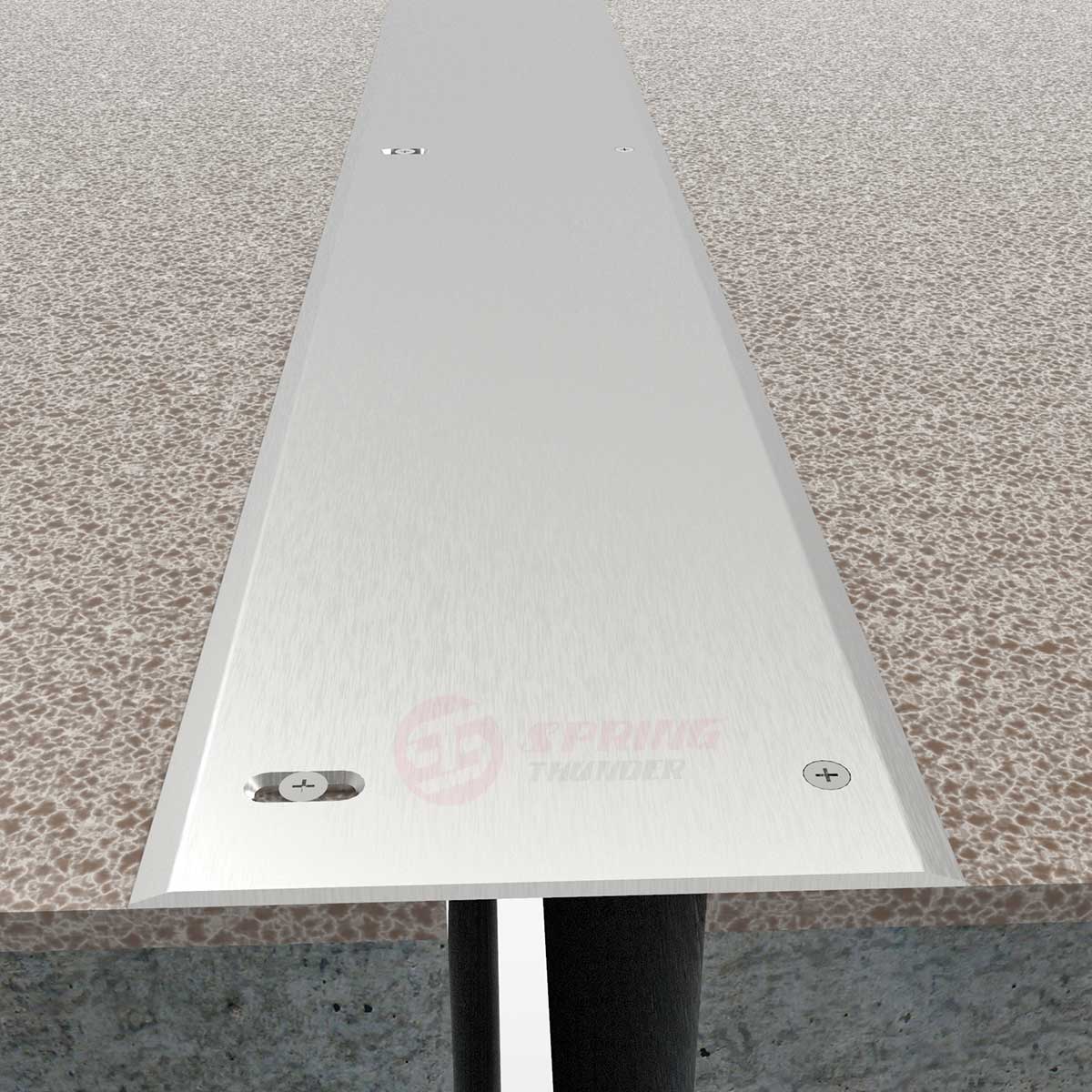

The FSP floor expansion joint cover plate with slotted holes is designed with beveled edges for pedestrian safety and easy installation.It can be used for interior and exterior applications and it is perfect economical solution for retrofit and surface mount installations.
It is available in aluminium, galvanised steel, stainless steel and brass.
It has countersunk holes in one side and elongated holes in the other side in order to guide and keep as it moves with the expansion and contraction.
Contact us for larger sizes for custom applications.
NOTE:Minimum and maximum openings represent movement criteria only
Joint Width Exposed Surface
50 150
100 200
150 250
200 300
250 350
300 400
350 450
400 500
450 550
500 600

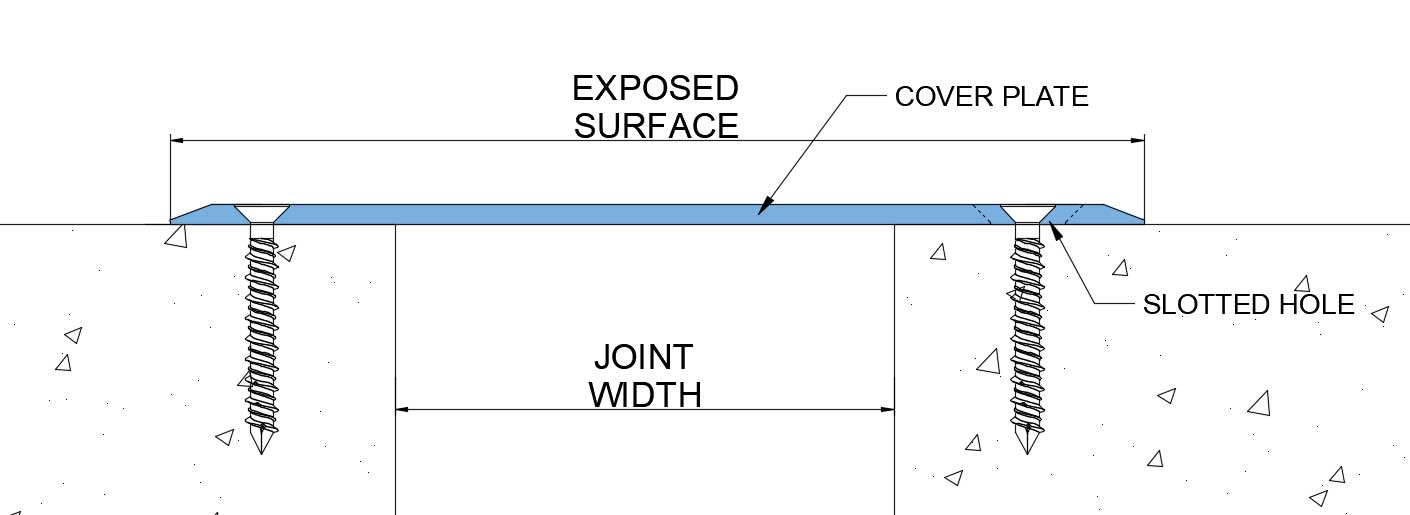

drawing
