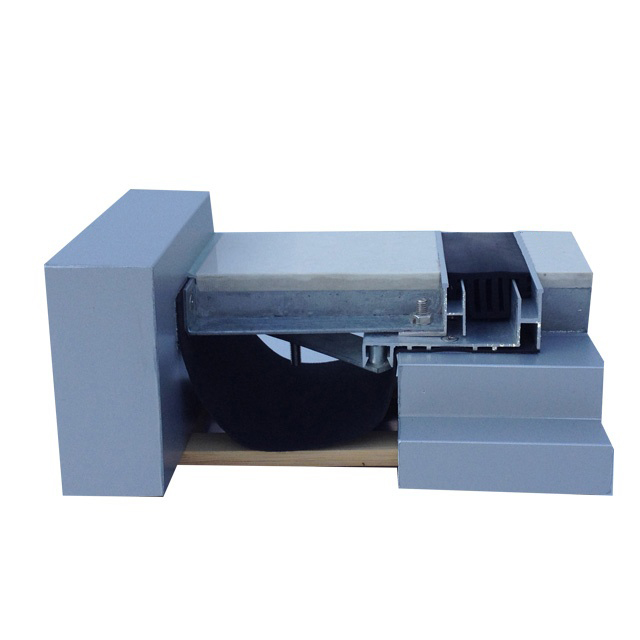

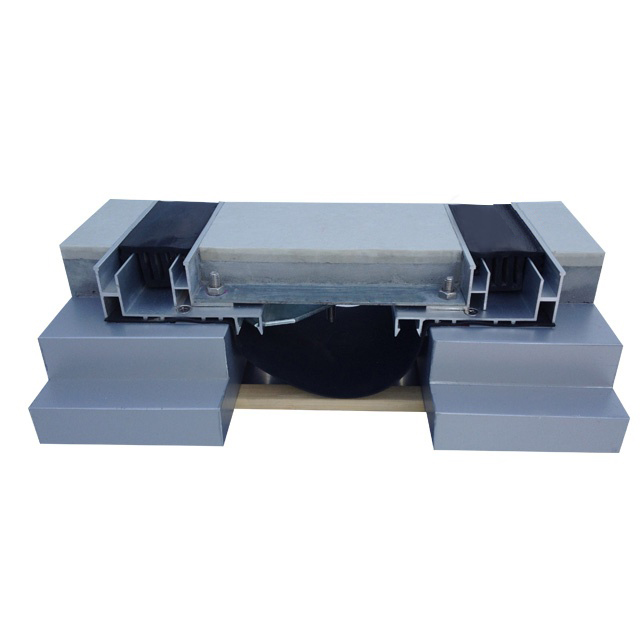

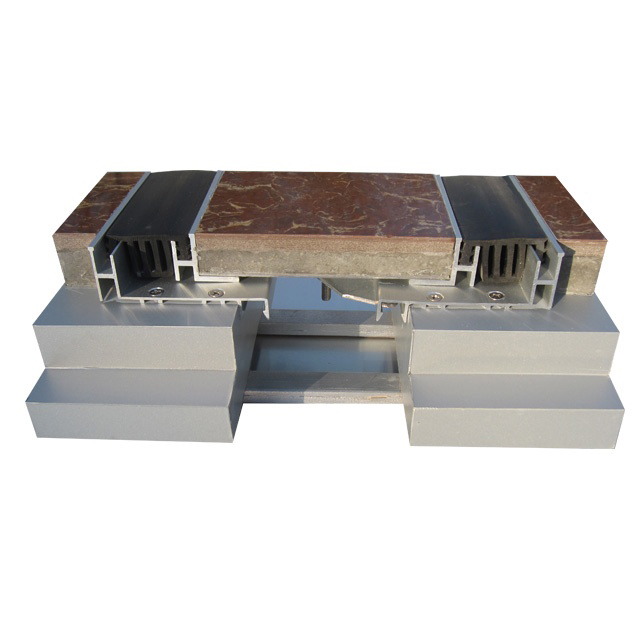

Concealed High Movement Floor Expansion Joint FRWS

This dual gasket, flush floor cover uses a deep extruded aluminum base frame and is ideal for areas with larger movement requirements and where a concealed cover is desired. The cover plate has a recess to accommodate various floor finishes.
Joint Sizes range from 50mm to 250mm.
Contact us for larger sizes for custom applications.

NOTE:Minimum and maximum openings represent movement criteria only

Model:F-F	Joint Width(W)	50	100	150	200	250
	Exposed Surface(ES)	187	237	337	337	337
	Movement Capacity(mm)	25	25	25	25	25
Model:F-W	Joint Width(W)	50	100	150	200	250
	Exposed Surface(ES)	119	169	219	269	319
	Movement Capacity(mm)	13	13	13	13	13

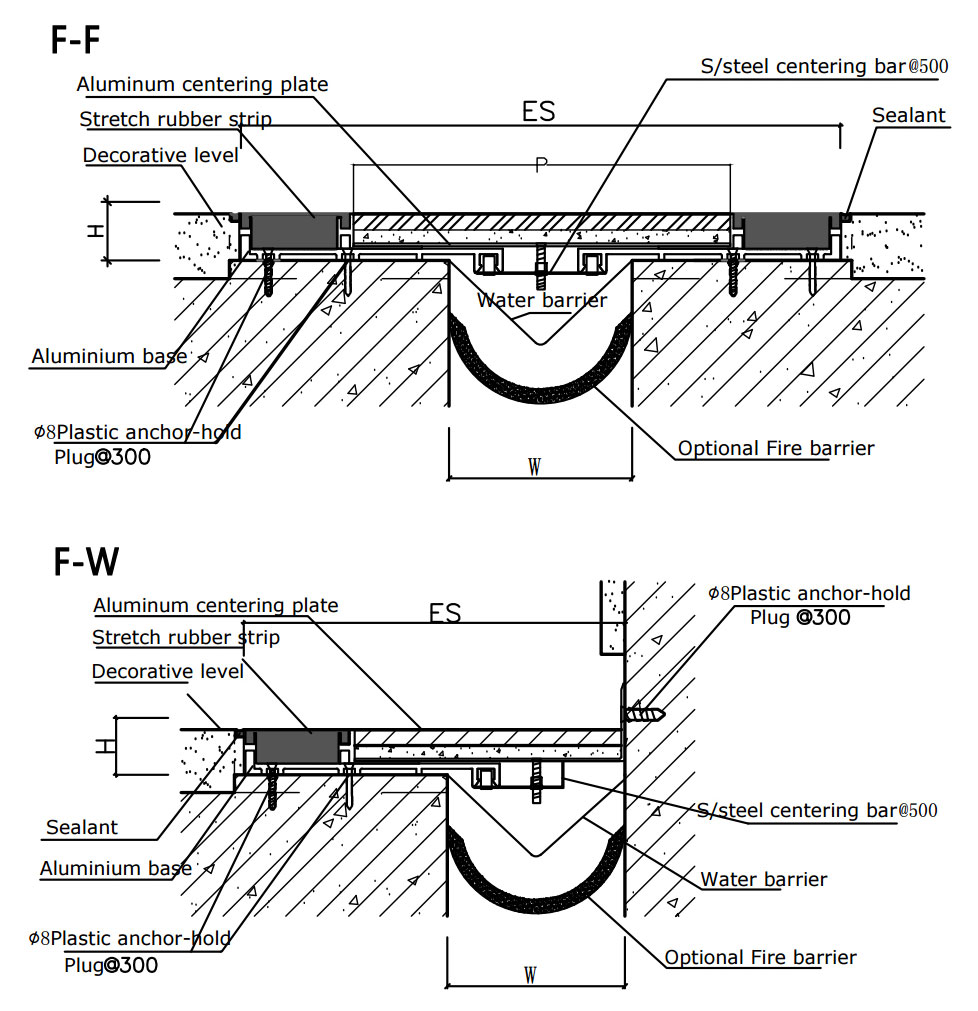

drawing details of Concealed High Movement Floor Expansion Joint FRWS 1
