High Traffic Floor Expansion Joint Cover

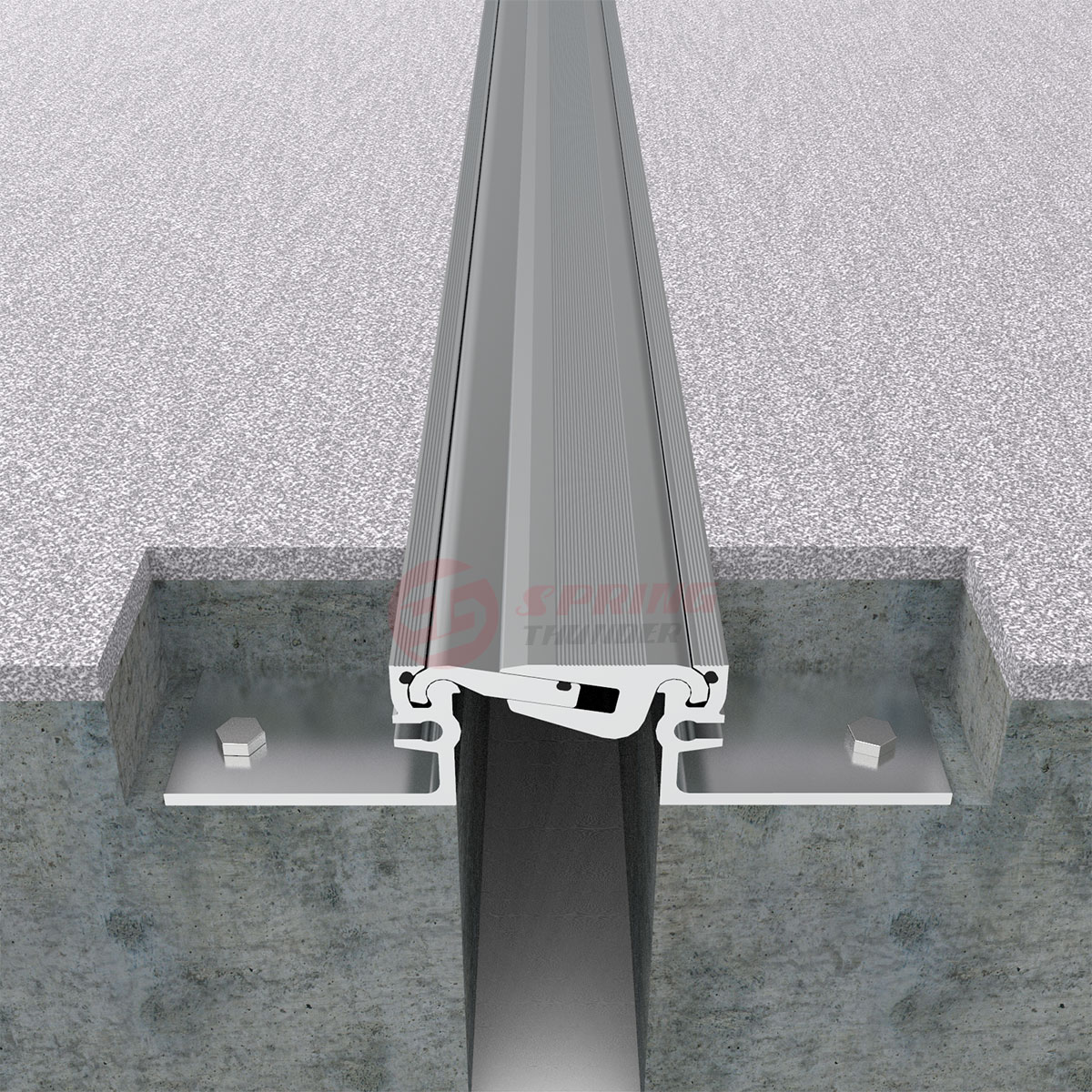

The unique interlocking cover design allows for horizontal movement in the floorslab, as well as some vertical deflection, and is designed to withstand heavy and frequent rolling loads. This system is also ideal for areas where significant foot traffic is expected such as malls and airports and is considered extremely low maintenance. The interlocking cover assembly utilizes precision gaskets to eliminate any metal-to-metal noise and to prevent the infiltration of liquids.
Striated surface,ensures good skid resistance
Articulated telescoping system,absorbs movement in 3 directions
Application:Floor To Floor,Floor to Wall
Joint Sizes range from 25mm to 100mm.
Contact us for larger sizes for custom applications.
NOTE:Minimum and maximum openings represent movement criteria only
ModelJoint WidthMinimum OpeningMaximum OpeningExposed SurfaceBlockout WidthBlockout Height
Floor To Floor25MM20MM35MM53MM102MMVaries
Floor To Wall25MM20MM35MM53MM102MMVaries
drawing details of High Traffic Floor Expansion Joint Cover 1
drawing details of High Traffic Floor Expansion Joint Cover 2
